Curved linear guide
Choose your individual rail

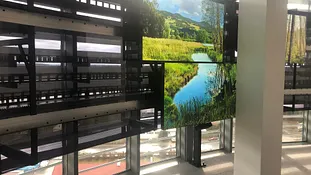

Based on the proven drylin® W series, igus® is offering curved linear guides that are customised and equipped with guide carriages specifically developed for use with rails of various radii. This results in innovative solutions for applications with limited installation space, e.g. in operator ergonomics, stage technology or in the driver's cab of commercial vehicles, where monitors and control systems are designed in such a way that safe and easy accessibility is guaranteed.
Your advantages with curved linear guides
More ergonomics
With curved rails for more design freedom, e.g. in workstations
More variability
In design thanks to flexible distances with parallel single rails.
Less installation time
Faster assembly thanks to double rails instead of two single rails fitted in parallel.
Great variety of materials
For a wide range of applications (e.g. automation, food sector, medical technology, pharmaceutical industry).
Smooth running
Carriage with hybrid roller bearings for smooth operation.
Components of curved linear guides
Order a free sample - a linear carriage made from 100% recyclate!
- Extremely lightweight components
- Quick installation on standard curved rails
- 100% lubrication-free and maintenance-free due to igus® high-performance polymers
- No need for external lubrication
- WWBSP versions have a stainless-steel carriage plate
- Made of 100% recycled iglidur® polymer eco P
Facts about curved linear guide
- Lubrication-free drylin® W carriage for curved rails
- Variable profile directions (convex, concave, curved bend)
- Torque-resistant alternative to bent tube profiles
- Bending option depending on radius, rail length, bearing/carriage and installation
- Customised project service (radii, rail profiles, coating)
Which rail is suitable for which carriage?
| Part number | Carriage for curved rail | Carriage for curved rail with pretension | Carriage for curved rail with manual clamp | Pretension with manual clamp | Profile direction | Form |
|---|---|---|---|---|---|---|
| WSB-06-30-RK300F | WWB-06-30-06-R300 | WWB-06-30-06-R300-P | WWB-06-30-06-R300-HKA | WWB-06-30-06-R300-HKA | Curve | Full circle |
| WSB-06-30-RK300HS | WWB-06-30-06-R300 | WWB-06-30-06-R300-P | WWB-06-30-06-R300-HKA | WWB-06-30-06-R300-P-HKA | Curve | Half circle |
| WSB-06-30-RK300QS | WWB-06-30-06-R300 | WWB-06-30-06-R300-P | WWB-06-30-06-R300-HKA | WWB-06-30-06-R300-P-HKA | Curve | Quarter circle |
| WSB-06-30-RK-500HS | WWB-06-30-06-R500 | WWB-06-30-06-R500-P | WWB-06-30-06-R300-HKA | WWB-06-30-06-R500-P-HKA | Curve | Half circle |
| WSB-06-30-RK-500QS | WWB-06-30-06-R500 | WWB-06-30-06-R500-P | WWB-06-30-06-R300-HKA | WWB-06-30-06-R500-P-HKA | Curve | Quarter circle |
| WSB-10-40-RK300F | WWB-10-40-10-R300 | WWB-10-40-10-R300-P | WWB-10-40-10-R300-HKA | WWB-10-40-10-R300-P-HKA | Curve | Full circle |
| WSB-10-40-RK300HS | WWB-10-40-10-R300 | WWB-10-40-10-R300-P | WWB-10-40-10-R300-HKA | WWB-10-40-10-R300-P-HKA | Curve | Half circle |
| WSB-10-40-RK300QS | WWB-10-40-10-R300 | WWB-10-40-10-R300-P | WWB-10-40-10-R300-HKA | WWB-10-40-10-R300-P-HKA | Curve | Quarter circle |
| WSB-10-40-RK500F | WWB-10-40-10-R500 | WWB-10-40-10-R500-P | WWB-10-40-10-R500-HKA | WWB-10-40-10-R500-P-HKA | Curve | Full circle |
| WSB-10-40-RK500HS | WWB-10-40-10-R500 | WWB-10-40-10-R500-P | WWB-10-40-10-R500-HKA | WWB-10-40-10-R500-P-HKA | Curve | Half circle |
| WSB-10-40-RK500QS | WWB-10-40-10-R500 | WWB-10-40-10-R500-P | WWB-10-40-10-R500-HKA | WWB-10-40-10-R500-P-HKA | Curve | Quarter circle |
More information is also available in our video
