Bar stock for motion

The round rods made of of the iglidur® range of bar stock can be ordered in individual lengths from 100 mm to 1000 mm and with a diameter of 10 mm to 100 mm. We offer different materials to meet the different requirements of each application. Here, you can find the right round-rod material - whether for low, medium or high speeds, for temperatures up to 250 °C or for mainly stationary or extreme loads, in other words for almost every requirement.
Like every igus® product, the round rods are also suitable for absolutely lubrication-free use and are therefore not only maintenance-free but are also especially hygienic.
For example, iglidur® round rods are used in the area of medical technology and in the food and packaging industry.

Categories
Filter
Core Requirements
Size
Requirements
Material

Number of products: 29

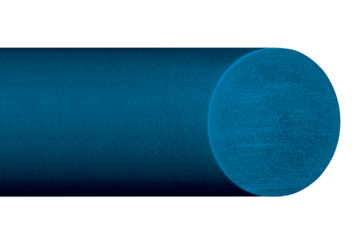

iglidur® A350, round bar

  • For use with temperatures up to +180°C
  • Comply with FDA requirements
  • For medium to high loads
  • Equally good for both rotating and pivoting applications
  • Lubrication-free and maintenance-free
  •  Complies with the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors

48.89 USD/m
14 items, thereof ready for shipping:
11 in 24 hours
3 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J, round bar

  • Low wear against different shaft materials
  • Excellent wear resistance at room temperature
  • Very good wear resistance at medium temperatures
  • Low coefficient of friction during dry operation
  • Vibration-dampening
  • Good chemical resistance
  • For best performance with soft shaft materials
  • Resistant to dirt and dust
  • Low moisture absorption
13.23 USD/m
16 items, thereof ready for shipping:
16 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® A180, round bar

  • Complies with Food and Drug Administration (FDA) regulations for contact with food
  • Good media-resistance
  • For wet environments
  • High wear resistance
  • Resistant to edge pressure
  • Resistant to shocks and impacts
  • Resistant to dirt and dust
12.73 USD/m
12 items, thereof ready for shipping:
12 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® X, round bar

  • Continuous operating temperatures from -100 to +250°C
  • Extremely high chemical resistance
  • Complies with the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors
  • Excellent wear resistance under water
  • High compressive strength
  • Mould resistant according to DIN EN ISO 846
105.68 USD/m
15 items, thereof ready for shipping:
11 in 24 hours
4 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® A160, round bar

  • Compliant with EU regulation 10/2011 EC, FDA-compliant
  • High media resistance
  • Lubrication and maintenance-free
  • Resistant to shocks and impacts
  • Resistant to dirt and dust
  • Excellent coefficient of friction
46.29 USD/m
11 items, thereof ready for shipping:
9 in 24 hours
2 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® A181, round bar

  • For use at up to +90°C
  • Food grade material, FDA and EC regulation 10/2011 EC compliant
  • Good media-resistance
  • Suitable for high speeds
  • Low moisture absorption
  • Extremely resistant to edge pressure
  • Very resistant to shocks and impacts
  • Resistant to dirt and dust
25.82 USD/m
9 items, thereof ready for shipping:
7 in 24 hours
1 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® H1, round bar

  • High wear resistance in extreme ambient conditions
  • Low coefficients of friction
  • High resistance to temperature and chemicals
  • For underbonnet applications
  • Lubrication and maintenance-free
  • Mould resistant according to DIN EN ISO 846
  • Good wear resistance under water
  • Low moisture absorption
118.14 USD/m
7 items, thereof ready for shipping:
6 in 24 hours
1 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J2, round bar

  • Good mechanical properties, robust
  • Cost-effective
  • Good media resistance
  • Lubrication and maintenance-free
108.20 USD/m
1 items, thereof ready for shipping:
1 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J3, round bar

  • Specialist for pivoting and pulsating loads
  • Excellent wear resistance at room temperature
  • Good wear resistance at medium temperatures
  • Good media-resistance
  • Low moisture absorption
  • PTFE-free
  • Resistant to edge pressure
  • Resistant to shocks and impacts
  • Resistant to dirt and dust
24.01 USD/m
9 items, thereof ready for shipping:
9 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J4, round bar

  • Lubrication and maintenance-free
  • Low-cost material for mass production
  • Low coefficients of friction
  • Good media resistance
  • Low moisture absorption
28.29 USD/m
14 items, thereof ready for shipping:
12 in 24 hours
2 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J200, round bar

  • Very long service life with hard anodised aluminium
  • Low coefficient of friction
  • Wear-resistant
  • For low to medium loads
  • Lubrication and maintenance-free
  • High media resistance
  • Resistant to edge pressure
  • Resistant to shocks and impacts
Upon request
3 items, thereof ready for shipping:
3 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J260, round bar

  • Very good coefficient of friction for low or medium loads
  • Good media resistance
  • Long service life – even on polymer shafts and in other special cases
  • Lubrication and maintenance-free
106.82 USD/m
2 items, thereof ready for shipping:
2 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® J350, round bar

  • Excellent coefficient of friction against steel
  • For continuous operating temperatures up to +180°C
  • For medium and high loads
  • Complies with the fire prevention requirements of the Federal Aviation Administration of the USA (FAA) for aircraft interiors
  • Particularly well suited to rotational movement
  • High media resistance
  • Good wear resistance at room temperature
  • Good wear resistance under water
  • Low moisture absorption
70.35 USD/m
14 items, thereof ready for shipping:
11 in 24 hours
2 in 2 weeks
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® M250, round bar

  • Excellent vibration dampening
  • Resistant to edge pressure
  • High impact resistance
  • Extremely resistant to edge pressure
  • Very resistant to shocks and impacts
  • Particularly resistant to dirt and dust
37.07 USD/m
7 items, thereof ready for shipping:
6 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)

iglidur® P210, round bar

  • Low moisture absorption
  • Low coefficient of friction and wear on almost every shaft
  • Good price-performance ratio
  • Extremely resistant to edge pressure
  • Very resistant to shocks and impacts
  • Good wear resistance at room temperature
  • Good wear resistance at medium temperatures
  • Resistant to dirt and dust
  • Fogging behaviour according to DIN 75201-B
103.16 USD/m
10 items, thereof ready for shipping:
10 in 24 hours
To the product page
RoHS compliant
According to 2011/65/EU (RoHS 2)
