Number of products: 29

New

e-spool® flex - uninterrupted panel feed | Extension length 5-15m
e-spool® flex - uninterrupted panel feed | Extension length 5-15m
  • No slip ring
  • Without interruption (no slip ring), for energy,
    data, fluids and air
  • Space-saving
  • Universal assembly
  • Constant tensile strain on the cable
  • Cost-effective
  • Easy in case of repair
Note: Please consider VDE 0298 Part 5 (Current carrying capacity and conversion factors for wound cables) when selecting your cables and when using e-spool flex
796.07 USD/Pc.
9 items, thereof ready for shipping:
9 in 8 weeks
To the product page

e-skin flat cable guidance system and CFCLEAN
e-skin flat cable guidance system and CFCLEAN
  • Modular and compact design
  • Replace cables quickly
  • Suitable for cleanrooms according to IPA ISO Class 1
  • High reliability due to balanced stranded structure of CFCLEAN cable
  • Available from stock
Upon request
To the product page

rol e-chain® system
rol e-chain® system
Long travels and very high traversing speed As an energy chain with crossbars every link or as an enclosed e-tube.
Upon request
To the product page

Rotary modules – for circular movements
Rotary modules – for circular movements
The igus® modular system for fast rotary applications. Integrated strain relief and cable guides within the guide trough. Maximum angle of rotation 600°.
Upon request
To the product page

ESD energy chains
ESD energy chains
Openable energy chains with mounting brackets and interior separation in electrically conductive ESD material available from stock.
Upon request
To the product page

e-skin® corrugated tube
e-skin® corrugated tube
  • Space requirement: 80 - 200mm
  • Bend radius: 40 - 55mm
  • Unsupported length: depends on the guided cables
Upon request
To the product page

guidelok horizontal - upper run guide
guidelok horizontal - upper run guide
Unhindered travel: no swarf can settle between the sliding surfaces of the upper and lower runs of the energy chain.
Upon request
To the product page

e-spool: multi-energy coil
e-spool: multi-energy coil
The alternative to a cable reel – reduce cable wear and reliably guide different media.
Upon request
To the product page

guidelok slimline P/PS - vertical guide
guidelok slimline P/PS - vertical guide
  • Up to 7m/s and 10m/s2
  • Up to 80% less trough required, saving cost and weight
  • For hanging systems up to 50m
Upon request
To the product page

PMA cable protection: diverse selection of tubes and systems
PMA cable protection: diverse selection of tubes and systems
To protect flexible electric cables.
Upon request
To the product page

E4/4HD – long travels or "side-mounted"
E4/4HD – long travels or "side-mounted"
Energy chains and tubes openable from both sides. Inner heights of 32 to 80mm. Especially suitable for "side-mounted" and travel distances of over 200m.
Upon request
To the product page

Hybrid energy chain YE.42
Hybrid energy chain YE.42
50% stronger than pure plastic energy chains* and 50% lighter than pure steel energy chains*. No rivets, no screws. Energy chain links openable quickly, for easy cable replacement.
  • Inner height hi: 42mm
  • Outer height ha: 76mm
  • Inner widths Bi: 50 - 400mm
  • Outer width Ba: 68 - 418mm
  • Bend radii R: 100mm
  • Pitch: 67mm
66.81 USD/Pc.
32 items, thereof ready for shipping:
27 in 72 hours
To the product page

Hybrid energy chain YE.56
Hybrid energy chain YE.56
50% stronger than pure plastic energy chains* and 50% lighter than pure steel energy chains*. No rivets, no screws. Energy chain links openable quickly, for easy cable replacement.
  • Inner height hi: 56mm
  • Outer height ha: 90
  • Inner widths Bi: 50 - 600mm
  • Outer width Ba: 74 - 624mm
  • Bend radius R: 100 - 500mm
  • Pitch: 91mm
Upon request
41 items, thereof ready for shipping:
41 in 72 hours
To the product page

AX e-chains® series
AX e-chains® series
Exterior stop-dogs prevent the accumulation of dust. All existing widths can be combined.
Upon request
To the product page
New

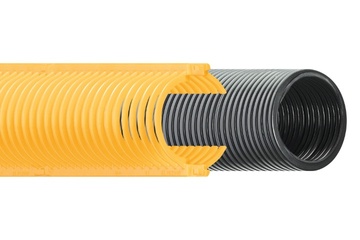

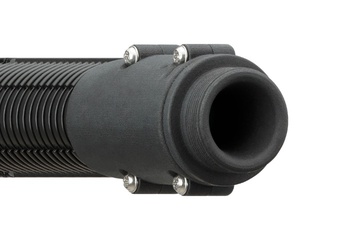

SCARA cable solution connection to ball screw
SCARA cable solution connection to ball screw
  • Allows unrestricted rotation of the hose on the ball screw
  • The length of the connection depends on the length of the ball screw of the SCARA robot.
  • Enables the connection of corrugated hose with e-rib®
  • Available for SCARA Robots manufacturer: Epson, ABB, Yaskawa, Fanuc, Denso & Kuka
190.00 USD/Pc.
6 items, thereof ready for shipping:
6 in 72 hours
To the product page
