iglidur® M250, split bearing MYM-K, mm

With anti-rotation feature

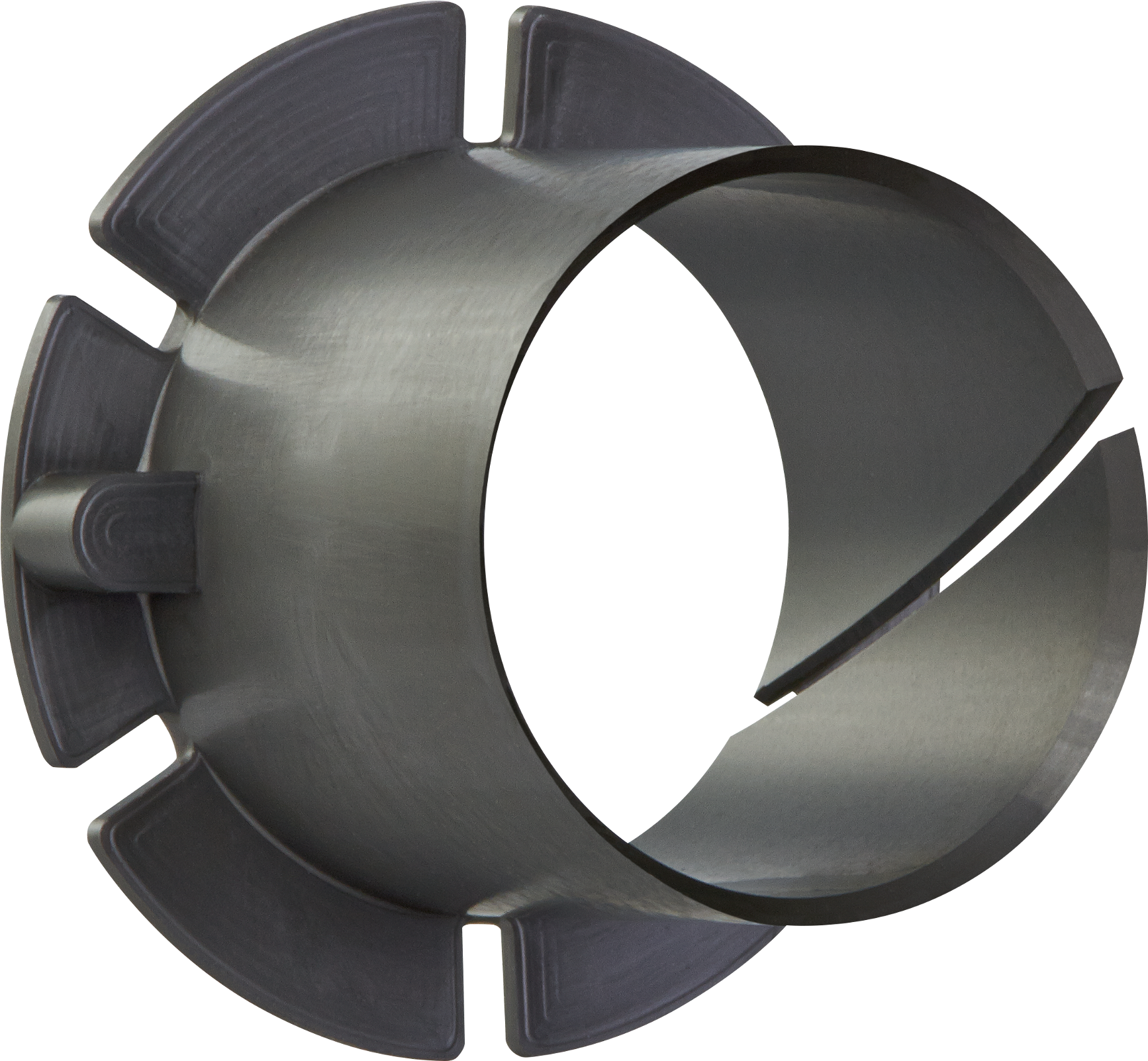

iglidur® M250, split bearing MYM-K, mm
igus-icon-lupe
iglidur® M250, split bearing MYM-K, mm drawing
igus-icon-lupe
1 from 2
iglidur® M250, split bearing MYM-K, mm

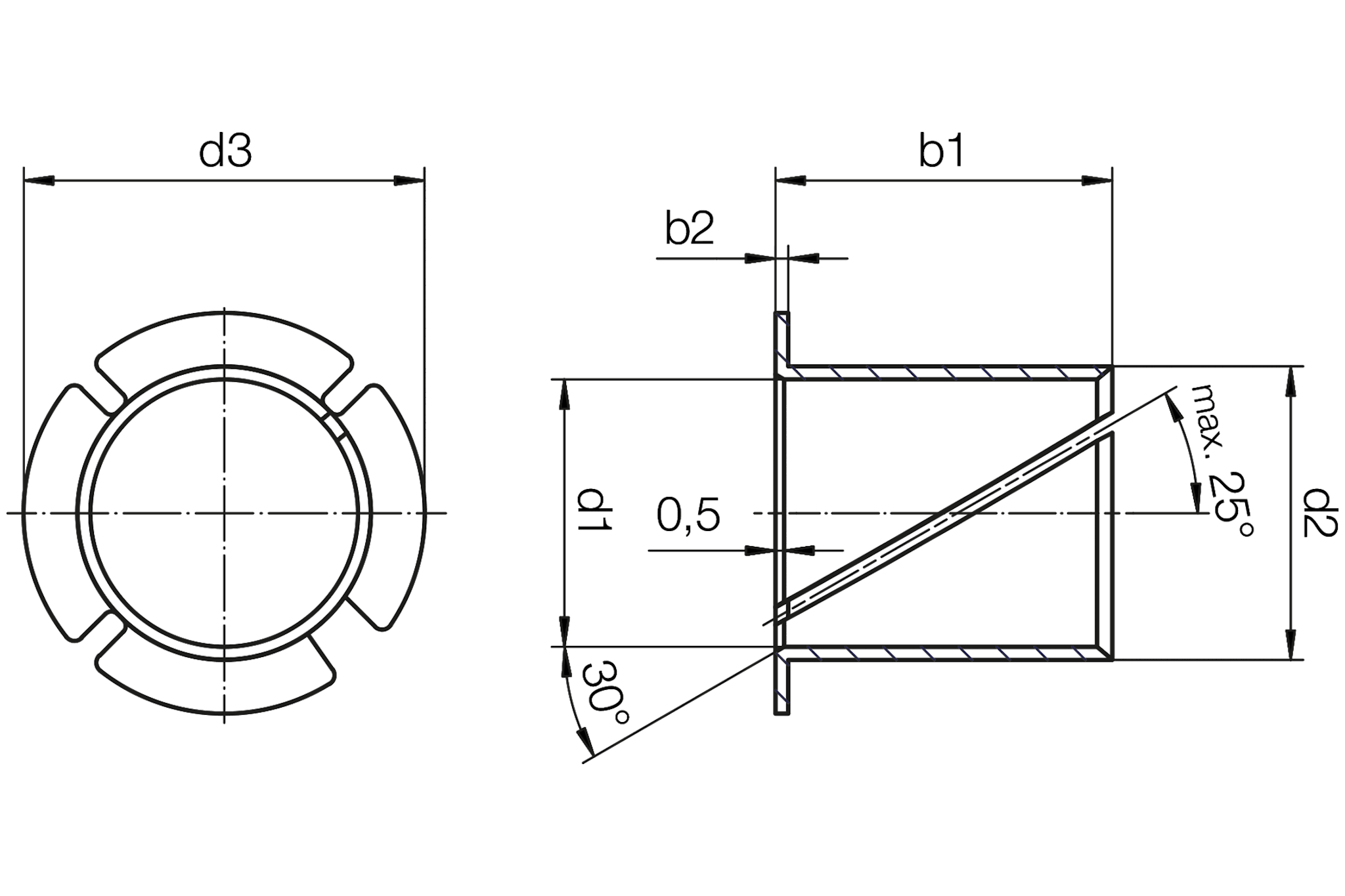

iglidur® M250, split bearing MYM-K, mm drawing
  • Part number: MYM-04-04-K
  • Material: iglidur® M250
  • Shape: Shop split bearings with anti-rotation feature
  • Dimensions:
    • d1 4 mm
    • b1 4 mm
    • d3 7 mm
  • Adjust dimensions
  • Injection moulding
  • Service life:

    Not available

    igus-icon-info-circle-gray
Material properties:
  • with anti-rotation feature
  • low bearing clearance
  • very precise
  • easy installation due to inclined slot
  • Material: iglidur® M250
  • maintenance-free and calculable service life
Total price:

plus VAT and shipping charges

loading...
igus-icon-lieferzeit
Delivery time on request
Easy to install iglidur® split bearing with anti-rotation feature made from our tried-and-tested iglidur® M250 material. The slot compensates for holding tolerances, allows low bearing clearance and ensures easy assembly.
