Modular gearbox system

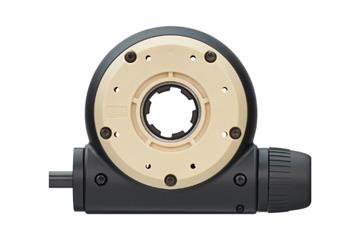

The standard version among Apiro gearboxes: the worm gear with hollow shaft enables flexible drive connections.

Product information

• available transmissions 4:1, 32:1, 64:1
• Output torque 2.5Nm

Optionally available

• more transmissions
• various fasteners

Bevel gear units are used wherever motion and forces have to be transmitted at right angles. With a 1:1 transmission ratio, the transmitted torques can be transferred almost without loss.

• 1:1 transmission ratio
• Splash-proof
• Ini-kit available for all variants

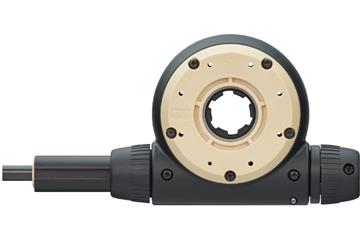

The gearbox and the direct multi-function profile can be used, among other things, to implement series connections of gearboxes.

Product information

• available transmissions 4:1, 32:1, 64:1
• Output torque 2.5Nm

Optionally available

• more transmissions
• various fasteners

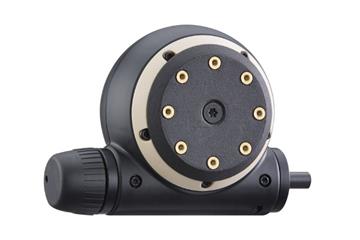

This gearbox from the Apiro modular gearbox system is particularly suitable for slewing ring applications, as it can, among other things, be used as an external rotary axis.

Product information

• available transmissions 4:1, 32:1, 64:1
• Output torque 2.5Nm

Optionally available

• more transmissions
• various fasteners

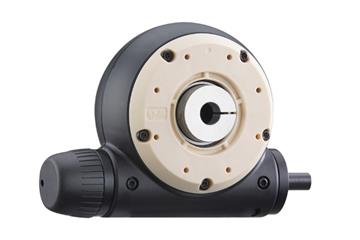

The version with couplings on the output allows the attachment of various shafts with a maximum diameter of 12 millimetres.

Product information

• available transmissions 4:1, 32:1, 64:1
• Coupling diameter 8mm

Optionally available

• more transmissions
• various fasteners

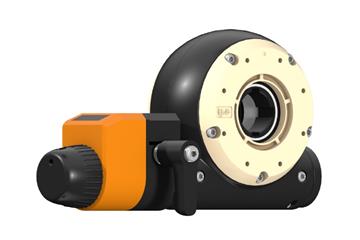

The complete Apiro gear unit including manual clamp and position indicator is ideal for manual adjustments and fixings.

Product information

• available transmissions 4:1, 32:1, 64:1
• Accessories can be pivoted in four positions:0°, 90°, 180°, 270°

Optionally available

• more transmissions
• various fasteners

A simple and direct connection of the Apiro gearboxes to the dryspin lead screws

Product information

• available transmissions 4:1, 32:1, 64:1
• Available options: DS10x25, DS12x5 and TR16x2

Optionally available

• more transmissions
• various fasteners

The standard version among Apiro gearboxes: the worm gear with drive coupling enables a direct connection. The gearbox with an output shaft enables a direct connection to the output and is ideally suited for connection to drylin drive technology.

Product information

• available transmissions 4:1, 32:1, 64:1
• Output shaft diameter: 8mm

Optionally available

• more transmissions
• various fasteners

Zur Befestigung von Apiro Getrieben

General properties:

• Apiro worm gear with tribologically optimised material compounds
• Particularly suitable as drive in format adjustment and synchronisations
• available ratios: 4:1, 8:1, 32:1, 64:1
• Large handwheel, position indicator and hand clamp for manual drive
• output shafts 4mm-12mm possible
• Easy
• Lubrication-free
• Low backlash

General properties:

• Apiro worm gear with tribologically optimised material compounds
• Available gear ratios: 4:1, 8:1, 32:1, 64:1
• Motorised or manual adjustment possible
• Wide range of accessories available
• Suitable for splash water
• Easy
• Lubrication-free
• Clearance arm

General properties:

• Dry running thanks to tribologically optimised plastics
• Motorised or manual adjustment possible
• Other thread pitches available on request
• Suitable for splash water
• Light weight
• Backlash-free
