SCARA cable solution

Durable energy supply on the SCARA robot

igus® has developed the e-rib to safely guide cables guided by corrugated hose. In combination with the reinforcements at both ends of the corrugated hose as well as the rotary unions, this solution is ideally suited for high-speed SCARA applications.

The e-rib fills the joints of the corrugated hose to stabilise it in such a way that it can only move in one direction. The corrugated hose has an unsupported length due to the lateral guide elements. As a retrofit, the e-rib allows an upgrade of existing applications in just a few steps. The e-rib is independent of the hose manufacturer. At first we are offering this solution in the nominal width of 29mm.

Scara

Configure SCARA robots quickly and easily

Scara

Select your SCARA robot using the drop-down menu or quick search.

Scara

Then set the fixed point of your application.

Scara

We will send you an exploded view and a parts list that you can order directly, or you can just request an quotation.


Explained in less than 30 seconds

Matthias Meyer presents the Scara cable solution

  • The energy supply for Scara robots
  • Individually adaptable for different Scara models
  • Includes the energy supply system from axis 1 to the ball screw
  • Currently the nominal width of the Scara cable solution (inside) is available with 29mm
  • Nominal widths 23mm and 36mm are being planned
  • Spare parts supply is guaranteed by the ordering of individual parts

Request Scara cable solution
Tech up

Tech up

  • Modular system, easy to retrofit
  • Can be delivered as harnessed system
  • Custom design for easy adjustment to different SCARA types
  • Safe guidance of cables and hoses

Cost down

Cost down

  • Easy maintenance
  • High running performance
  • All components are individually replaceable
  • Less downtime

Proof

Proof

  • Since 2016, 50 EPSON SCARA robots have been in continuous operation at a German motor vehicle manufacturer
  • From 20.08.2020 to 1.03.2021 , more than 2,500,000 test cycles were completed in the igus® test laboratory


Sustainability

Sustainability

  • Have your e-rib recycled as
    part of the igus chainge Recycling Program at the end of its life cycle. Irrespective of the manufacturer. You will receive a chainge Recycling Program voucher


What is behind the Scara cable solution?

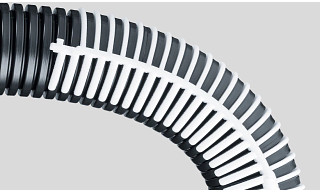

Corrugated tube dynamically reinforced

The reinforcement for existing corrugated tube systems. The e-rib is clipped onto a corrugated hose. The new sizes are independent of the hose manufacturer. The e-rib stabilises the corrugated hose so that it can only move in one direction. With its lateral guide elements, the corrugated hose requires no support along its length due to the e-rib.
Initially we offer the nominal width 29 for the Scara robots.


e-rib_1

Customer application of a Scara cable solution

in continuous operation for over 3.5 years (2020)


At a German motor vehicle manufacturer, 50 Epson Scara robots have been in continuous operation with our Scara solution since 2016 and have so far achieved a cycle count of over 17 million.

  • Largely maintenance-free
  • Significant increase of the system service life
  • Can be retrofitted with little effort

request Scara cable solution here

Scara cable solution in the igus test laboratory

Part 1

Here you can see our test setup for the product expansion.

This video was recorded on 27.08.2020

It shows the new rotary unions still as 3D printed parts, which together with the e-rib form the Scara cable solution.


Scara cable solution in the igus test laboratory

Part 2

This video was recorded in the igus test lab on 25/11/2020 and shows the functionality of the Scara cable solution even more clearly.

Rotary linkage + e-rib ensure optimum unity.


Example of the structure of part numbers:
SCARA EPSON G6 553s

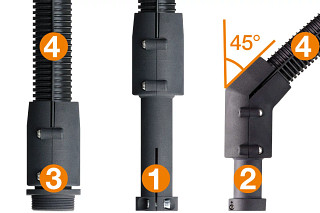

The Scara Cable Solution consists of 3 elements, which match the respective SCARA robot or are adapted to it.

1. Rotary bearing, moving end: TR.SCS.29.01.20.94.01.0

2. Rotary bearing, fixed end: TR.SCS.29.02.40.01.0

3. Corrugated hose with e-rib: TR.SCS.29.LLLL.0

Submit an enquiry regarding parts for your Scara

SCARA Cable Solution Connection 1 - Moving End (Ball Screw)

Part No. 1 suitable for
ready for shipping in 8 weeks TR.SCS.29.01.16.48.01.0 Epson T3 series 188.52 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.01.16.97.01.0 Epson LS3 series 202.82 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.01.20.40.01.0 Epson T6 series 197.93 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.01.20.94.01.0 Epson G6 series 212.65 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.01.25.35.01.0 Epson LS10 / LS20 series 194.04 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.01.25.48.01.0 Epson G10 / G20 series 202.38 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Quote request Quote request
myCatalog myCatalog

SCARA Cable Solution Connection 2 - Fixed End

Part No. 2 rotating/fixed
ready for shipping in 8 weeks TR.SCS.29.02.40.01.0 rotating mount with M40 threads 163.39 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.04.40.01.0 locking with M40 thread 121.77 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Quote request Quote request
myCatalog myCatalog

SCARA Cable Solution Hose + E-Rib

Part No. 3 Length in mm
ready for shipping in 8 weeks TR.SCS.29.300.0 495 Upon request Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.500.0 495 18.60 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1000.0 995 34.75 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1100.0 1095 38.23 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1200.0 1195 41.71 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1300.0 1295 45.19 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1400.0 1395 48.67 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.1500.0 1495 52.15 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.2000.0 1995 69.50 USD Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.2500.0 2495 Upon request Add to shopping cart
ready for shipping in 8 weeks TR.SCS.29.3000.0 2995 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Quote request Quote request
myCatalog myCatalog

Part number, moving end

SCARA EPSON G6 553s

Scara Cable Solution moving end

Part number, fixed end

SCARA EPSON G6 553s

Scara Cable Solution fixed end

Part number, + e-rib hose

SCARA EPSON G6 553s

Part No. Scara Cable Solution hose / tube

Application examples

e-rib application

Horizontal support

e-rib application, vertical

Vertical support


Potential application areas

e-loop in the offshore industry

Automotive production

e-loop in the oil and gas industry

Laboratory

e-loop in shore-power supply

Production


Scara cable solutions questions and answers

Which sizes are currently available?
- inner hose diameter of 29mm

How does the Scara Cable Solution absorb forces?
- The e-rib gives the corrugated hose stability
- End connection reinforcement at both ends of the system


Is the whole thing also available as igus readychain?
- Please contact us directly via the enquiry button





Request Scara cable solution as readychain
