basic flizz® - complete set [travels: 10 - 100 m]
1 complete set consists of:
E4.28 series e-chain® (2 metre pieces)
+ mounting brackets
+ encased stainless steel guide trough (3 metres per segment)
+ screwdriver
+ floating moving end (FTA)
+ adjustable moving arm
+ separators
+ strain relief
* grey-marked products are optional (depends on selection)
+ CF9.25.12 chainflex® TPE control cable 12G2.5mm²
+ smart plastics push/pull force detection (i.Sense EC.P (a.o. with 3D data, function video, ...))
Prices for sets with chainflex® cable exclude copper surcharge.
E4.28 series e-chain® (2 metre pieces)
+ mounting brackets
+ encased stainless steel guide trough (3 metres per segment)
+ screwdriver
+ floating moving end (FTA)
+ adjustable moving arm
+ separators
+ strain relief
* grey-marked products are optional (depends on selection)
+ CF9.25.12 chainflex® TPE control cable 12G2.5mm²
+ smart plastics push/pull force detection (i.Sense EC.P (a.o. with 3D data, function video, ...))
Prices for sets with chainflex® cable exclude copper surcharge.
Product description

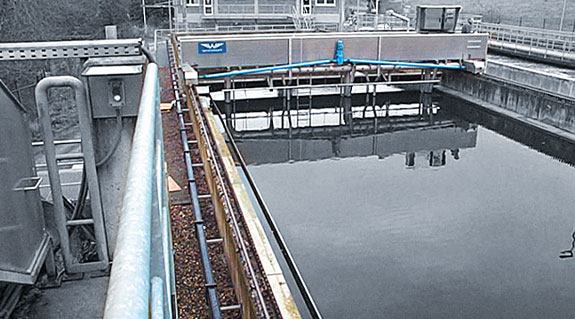

The basic flizz® is a system for mobile energy supply to scrapers, rakes and other sewage treatment and hydropower plants. A complete set consists of an energy chain filled with tested chainflex cables and guided safely in a weatherproof stainless steel housing. With the developed moving end arm and the smart plastics system i.Sense EC.P (a.o. with 3D data, function video, ...) for push/pull force detection, this set is an excellent complete solution. You can find more information on the topic smart plastics for wastewater treatment plants on our info page.
Why would I rather buy a complete set?
No need to spend lots of time looking for the right energy chain series and relevant accessories. We can assemble the complete energy chain set. All important components are carefully selected and matched to each other - from energy chains and mounting brackets up to guide troughs.
