Zipper system – Zip-quick installation

Extremely fast opening and closing with zipper e-chains and e-tubes – zipper e-chains deliver in terms of practicality and performance. The zipper function reduces assembly time. The small pitch, the tough-elastic zipper-band, and the sturdy link work well in high acceleration environments. The zipper series is one of the most popular igus e-chain series for demanding industrial sectors.

Your advantages:

  • quick and easy opening and closing
  • Small pitch for quiet, smooth running
  • High accelerations: 100m/s2 and more
Typical industries and applications:
Pick and place machines, semi-conductor machines, linear motors, handling applications, any technical devices, measuring equipment, machine tools (zipper e-tube)


Rip-open from outside

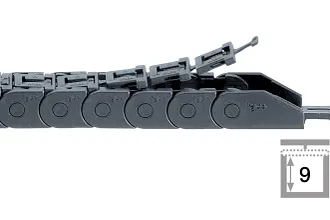

ready for shipping in 72 hours Series 047

Inner height hi: 9mm
Inner widths Bi: 10-16mm
Bend radii R: 18-38mm
Pitch: 13mm

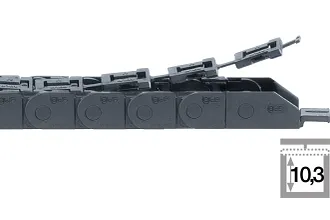

ready for shipping in 72 hours Series 07

Inner height hi: 10.3mm
Inner widths Bi: 6-64mm
Bend radii R: 18-48mm
Pitch: 20mm

ready for shipping in 72 hours Series 09

Inner height hi: 15mm
Inner widths Bi: 10-50mm
Bend radii R: 28-48mm
Pitch: 20mm

ready for shipping in 72 hours Series 15

Inner height hi: 17mm
Inner widths Bi: 15-100mm
Bend radii R: 38-180mm
Pitch: 30.5mm

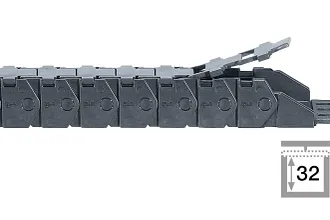

ready for shipping in 72 hours Series 17

Inner height hi: 32mm
Inner widths Bi: 15-100mm
Bend radii R: 63-125mm
Pitch: 30.5mm


e-tube, rip-open from outside

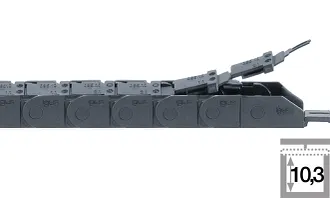

ready for shipping in 72 hours Series R07

Inner height hi: 10.3mm
Inner widths Bi: 10-50mm
Bend radii R: 38-48mm
Pitch: 20mm

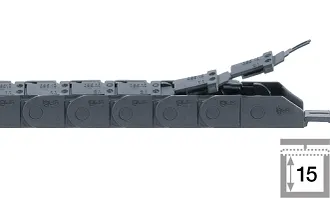

ready for shipping in 72 hours Series R09

Inner height hi: 15mm
Inner widths Bi: 10-50mm
Bend radii R: 48-100mm
Pitch: 20mm

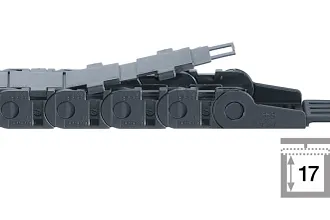

ready for shipping in 72 hours Series R15

Inner height hi: 17mm
Inner widths Bi: 25-80mm
Bend radii R: 63-180mm
Pitch: 30.5mm

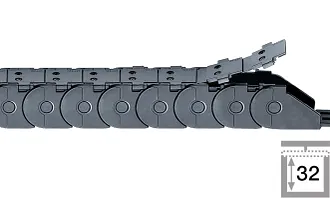

ready for shipping in 72 hours Series R17

Inner height hi: 32mm
Inner widths Bi: 15-63mm
Bend radii R: 63-125mm
Pitch: 30.5mm


e-chain selection guide

Specific parameters and a comparison table helps you find the right e-chain quickly.

Installation instructions

Joining and separating the zipper e-chain.

Application examples

Applications in a wide range of industrial areas and in the igus test laboratory.
