Inner height hi: 18 mm
Inner widths Bi: 15 - 100 mm
bending radii R: 28 - 180 mm
Pitch: 30,5 mm
E2 mini are one-piece or two-piece e-chains®, recommended for highly dynamic applications. igus® also offers numerous accessories and mounting options. Upgrades to openable versions are available for many types. Different types are interchangeable and can also serve as replacements.

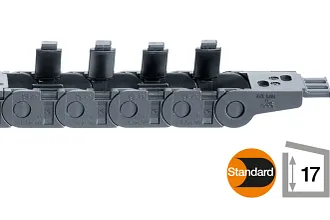

Snap-open e-chain® with high stability igus® E2 mini - Series B15.
Easy to assemble
Easy to disassemble
You can find the right e-chain® quickly by entering concrete parameters and with the aid of a comparison table.
Joining and separating of chain links
Applications in various industrial sectors.
Small pitch for silent operation
High torsion resistance
Double stop system and large pins for long service life
Optimized weight/stability ratio
Easy to mount
Manifold interior separation
General mechanical engineering etc.
UL94 - V2 classifications

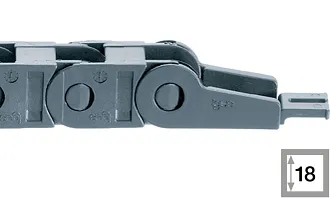

Cleanroom Class 1 (ISO class 3) for series 10, tested by the Dryden Engineering Company, California
Special version: Electrically conductive ESD versions upon request
