Power & Signal

List
Tile

Number of products: 10

16 A - Han E® - crimp contacts pin
16 A - Han E® - crimp contacts pin
16 A - Han E® - crimp contacts pin (silver-plated or gold-plated) (PU: 100 pieces)
Upon request
15 items, thereof ready for shipping:
15 in 24 hours
To the product page

16 A - Han E® - crimp contacts socket
16 A - Han E® - crimp contacts socket
16 A - Han E® - crimp contacts socket (silver-plated or gold-plated) (PU: 100 pieces)
Upon request
15 items, thereof ready for shipping:
15 in 24 hours
To the product page

Han E® module 09140063001 / 09140063101
Han E® module 09140063001 / 09140063101
Number of contacts: 6
Electrical data: 16A/500V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

Han EE® module 09140083001 / 09140083101
Han EE® module 09140083001 / 09140083101
Number of contacts: 8
Electrical data: 16A/400V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

Han EEE® module 09140203001 / 09140203101
Han EEE® module 09140203001 / 09140203101
Number of contacts: 20
Electrical data: 16A/500V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

Han E® protected module 09140063041 / 09140063141
Han E® protected module 09140063041 / 09140063141
Number of contacts: 6
Electrical data: 16A/830V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

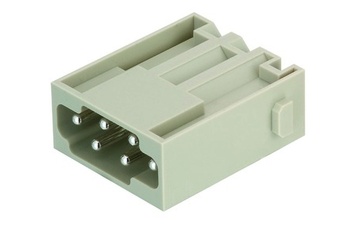

Han E® Quick Lock module 09140062633 / 09140062733
Han E® Quick Lock module 09140062633 / 09140062733
Number of contacts: 6
Electrical data: 16A/500V
Conductor cross section: 0.5 ... 2.5mm²
Connection type: Quick Lock connection
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

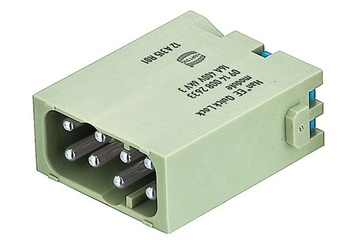

Han EE® Quick Lock Module 09140082633 / 09140082733
Han EE® Quick Lock Module 09140082633 / 09140082733
Number of contacts: 8
Electrical data: 16A/400V
Conductor cross section: 0.5 ... 2.5mm²
Connection type: Quick Lock connection
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

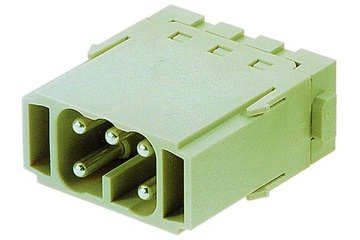

Han® ES module 09140052616 / 09140052716
Han® ES module 09140052616 / 09140052716
Number of contacts: 5
Electrical data: 16A/400V
Conductor cross section: 0.14 ... 2.5mm²
Connection type: Cage clamp connection
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page

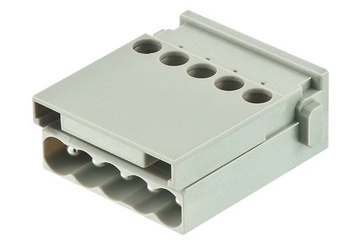

Han E® screw module 09140052601 / 09140052701
Han E® screw module 09140052601 / 09140052701
Number of contacts: 5
Electrical data: 16A/230V/400V
Conductor cross section: 0.5... 2.5mm²
Connection type: Screw connection
Upon request
2 items, thereof ready for shipping:
2 in 24 hours
To the product page
