Data / BUS

Number of contacts: 2 x 4 // 2 x 8 // 2x coax
Electrical data: 5A /50V // 10A / 50V
Data rate: 100Mbit/s (cat. 5e) // ≤ 500MHz / 75Ω
Connection type: Crimp, D-Sub // Han D
Conductor cross section: 0.09 ... 0.52mm²// 0.14 ... 2.5mm²

Number of contacts: 8
Data rate: 10Gbit/s (cat. 6a)

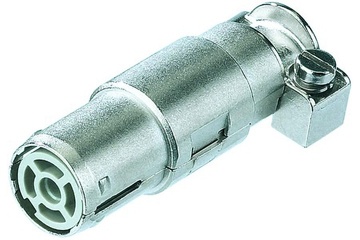

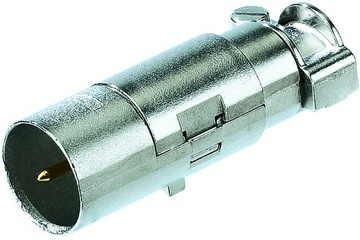

Compatible with Quintax, High Density Quintax, D Coax, E Coax inserts

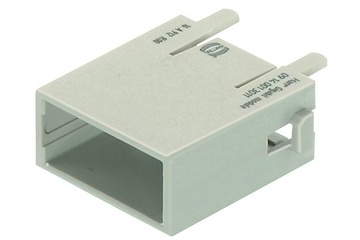

Compatible with Gigabit inserts

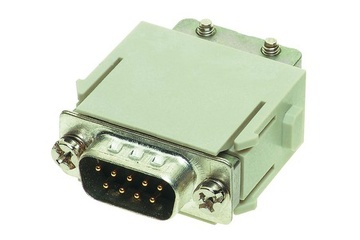

Number of Contacts: 9 + Shielding
Electrical data: 5A / 50V
Data rate: 12Mbit/s (Profibus)
Connection type: Crimp, D-Sub
Conductor cross section: 0.09... 0.52mm²

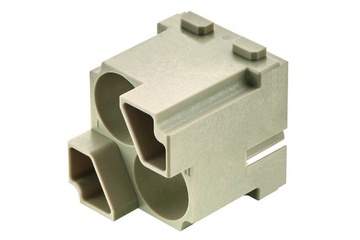

Number of contacts: 2 x 4 // 2 x 8 // 2x coax
Electrical data: 5A /50V // 10A / 50V
Data rate: 100Mbit/s (cat. 5e) // ≤ 500MHz / 75Ω
Connection type: Crimp, D-Sub // Han D
Conductor cross section: 0.09 ... 0.52mm²// 0.14 ... 2.5mm²

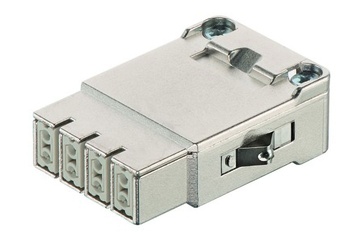

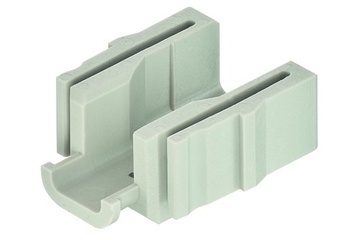

Number of contacts: 8
Electrical data: 5A / 50V
Data rate: 10Gbit/s (cat. 6A)
Connection type: Crimp, D-Sub
Conductor cross section: 0.09 ... 0.52mm²

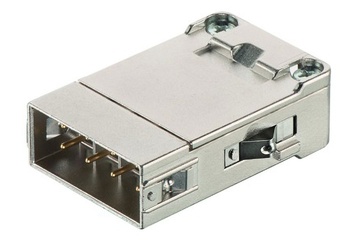

Number of contacts: 8
Electrical data: 5A / 50V
Data rate: 10Gbit/s (cat. 6A)
Connection type: Crimp, D-Sub
Conductor cross section: 0.09 ... 0.52mm²

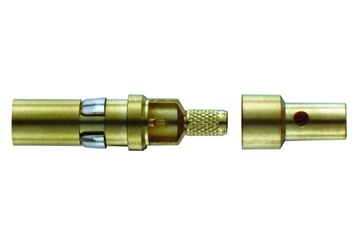

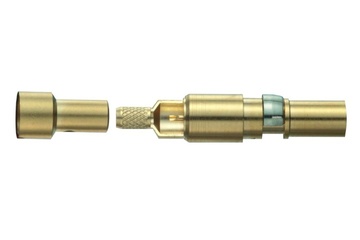

DIN 41626 Coaxial contacts for Han coaxial module (PU: 10 pieces)

Han® Multi modules (for DIN 41626 coaxial contacts) (PU: 10 pieces)

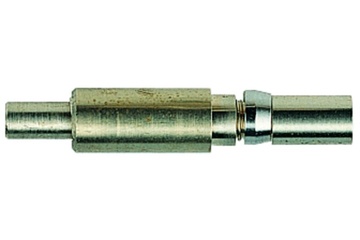

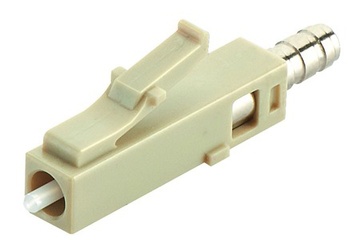

Optical contacts pin
MAT01720857 (PU: 25 pieces)
MAT01721502 (PU: 25 pieces)
MAT01737937  (PU: 25 pieces)
MAT01740291 (PU: 10 pieces)

Han Multi module, contact, socket, 1mm POF (PU: 25 pieces)
Han Multi module, contact, socket, GI-Fibre 50-62.5/125 multi-mode (PU: 10 pieces)

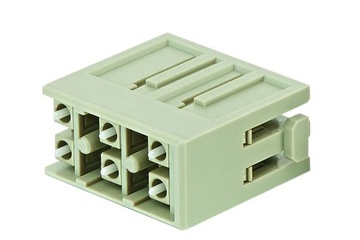

HAN LC, GI fibre 50-62.5/125 multi-mode

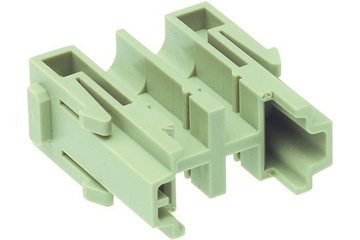

HAN SC, GI fibre 50-62.5/125 multi-mode

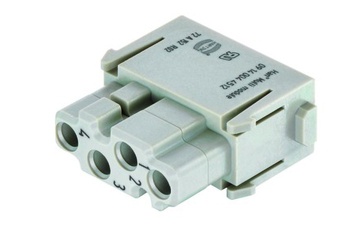

Han Multi module coaxial
