OCR cable guide for height-adjustable desk | round | with magnetic assembly clips

  • Round cable guide
  • 1m = 50 chain links
  • Intermediate connection is possible at any point
  • Can be easily clipped onto the chain
  • Can be attached with integrated magnets, adhesive strip or screws
  • Flexible fitting
  • Each chain link can be either a flexible or fixed version
  • Different colours upon request
  • reddot design award winner 2018
Product description
Routing cables at home or in the office is often a difficult task. Numerous cables of printers, monitors and other devices need to be organised. With the cable guide OCR  from igus, this is done in no time. The highlight of this e-chain® is that you can implement both movable and locked guides and also combine them if required: e-chains® links extended = flexible, compressed = locking. The mounting brackets can be used to glue the chain on, attach it with screws or secure it in different places with magnets. The intermediate bracket makes it possible to attach parts of the e-chain® to metal surfaces with metal clips.

Typical industries and applications
  • Office furniture
  • Furniture construction
  • IT systems
  • Wherever cables have to be routed neatly
Further information
Technical data
Accessories
Downloads

Other solutions

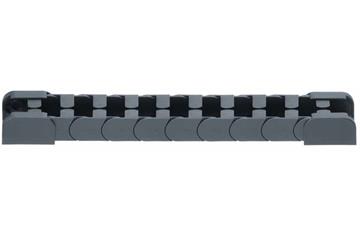

ZF14 system, cable chain, easy design, push in cables along the inner radius
ZF14 system, cable chain, easy design, push in cables along the inner radius

Inner height hi: 21mm, inner widths Bi: 38m, bend radii R: 28m, pitch: 30.5mm

13.02 USD/ft
easy chain® Series E03, energy chain, to be filled at the outer radius
easy chain® Series E03, energy chain, to be filled at the outer radius

Inner height hi: 5mm, inner widths Bi: 5 - 10mm, bend radii R: 10 - 28mm, pitch: 10mm

8.17 USD/ft

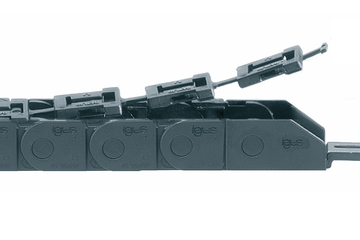

zipper Series 07, energy chain, zip-open along the outer radius
zipper Series 07, energy chain, zip-open along the outer radius

Inner height hi: 10.3mm, inner widths Bi: 6 - 64mm, bend radii R: 18 - 48mm, pitch: 20mm

10.63 USD/ft
