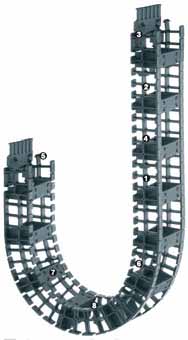

1.Side links on one strip
2.Perfect for high accelerations
3.Bracket for holding
tie wrap plate
5.Can be shortened to any length
6.Accessories available such as interior separation,
8.Virtually no polygon effect
* The required clearance height is HF = H + 40mm (at 2kg/m fill weight) Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
A = Moving end, B = Fixed endPitch: 15 mmChain links per m: 67 links/1005 mmTravel: SChain length= S/2 + K
Z = Cross bar distance (Standard: every 4th chain link, other distances upon request)
Unsupported length versus fill weightX axis: Unsupported length in m FLB/FLGY axis: Fill weight in kg/mLower scale: Travel S in mFLB = Unsupported with permissible sagFLG = Unsupported with straight upper run
Reference example A:
Fill weight = 0,5 [kg/m]
Unsupported length FLB = 1,2 m
Travel = 2,4 m
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Fast installation times thanks to side part bands
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types

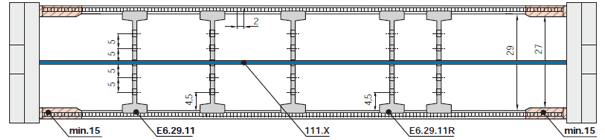

Option 1: Standard
Option 2: full-width shelf
Option 3: Shelves

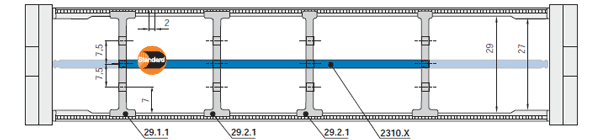

29.1 Standard - for all uses
Separator, wide base for maximum holding strength
and stability in e-chains®.
29.2 Faster installation of cables
Secure seating on one side, with wide base, opposite
side narrow for easy installation of cables.
2300.x Horizontal division
Locks securely into separators at both ends, giving a fixed width. Can be used as full-width shelf for
integrated subdivision or as a partial shelf for
separation on 3 levels.

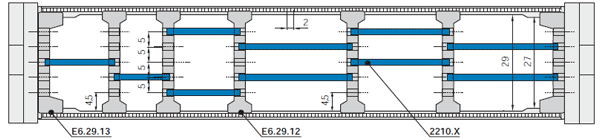

2. Full-width shelves
Tie wrap plate or strain relief with C-profile can be fitted to the last chain link.
