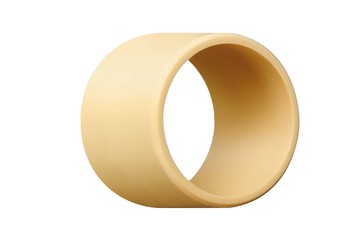

iglidur® W300 | The classic endurance runner, very wear-resistant on (almost) all shafts - Over 400 dimensions available from stock
- For especially long service life
- Low coefficient of friction
- Extremely high wear resistance
- Also suitable for soft shafts
- Resistant to dirt
- Lubrication- and maintenance-free
iglidur® W300 gives excellent wear resistance, even in harsh environments or when used with rough shafts. This material is the most tolerant of these external effects out of all the iglidur® range.
Typical application areas Vending machineryPrinting industryElectronic manufacturingWood industryMachine tools You can find further applications here:
Industry solutions When to use it?- When especially high service life is necessary
- When low coefficients of dynamic friction and high wear resistance are needed
- For use on 304 stainless steel shafts
- For very rough shafts or abrasive media
- Dirt-resistant
| When not to use it?- For high loads starting at 50 MPa
iglidur® Q, sleeve bearing, mm - If temperatures are constantly higher than +90°C
iglidur® H, sleeve bearing, mm iglidur® X, sleeve bearing, mm - For very wet environments
iglidur® P, sleeve bearing, mm - When an economical bearing is required
iglidur® G, sleeve bearing, mm
|
Use our filter options to find the suitable product Tolerances and measurement systemThe installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods Assemblyiglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining
