After selecting your application parameters the product finder shows an overview of the linear tables and motors that are suitable. The product finder calculates the individual price of the linear axis as well as the motor loads and the life expectancy in cycles. With only a few clicks, you can configure a complete linear axis including motor, supply cable and mounting components.
For a variety of automation tasks without programming. For single axes or room linear robots and DeltaRobot, integrated web server for data entry / No software installation or app needed for PC, tablet or smart phone. Stepper (ST), DC and EC motors with up to 21A peak currents and 48V inputs/outputs, analogue inputs, CANopen, ModbusTCP for connection to master control systems such as Siemens or Beckhoff
Simple automation directly at the control system without software and PC. Operation with limit switch or via power consumption of the motor. Left/right operation and speed control directly on the housing. Option for external switches/joysticks. Various modes of operation, tip operation and continuous operation. Various adjustable acceleration ramps. Power supply via 24 V / 2.5 A.
drylin® E NEMA 17This little motor can be impressive with good torque and high speeds. Reliable, rapid movements of smaller loads.
drylin® E NEMA 23High torque and high speed are the main advantages. This motor is the best choice for most applications in the medium load range.
drylin® E NEMA 23XLAn advanced development of the typical NEMA23 with approximately double the torque. The mounting dimensions are the same as in the NEMA23, so that it can be used on the same mounting face.
drylin® E NEMA 34Applications with high loads should use this large type. Heavy duty or parallel twin rail superstructures are typical working environment.
drylin® E - spindle motorsThese are used in stand-alone solutions for customer designs in confined installation spaces.
drylin® E - DC motorsSimple linear motions can be implemented by DC motors. The motor can be rotated with a battery or a simple power supply unit.
drylin® E - NEMA23 IP65 & IP68IP65 (spray water) and IP86 (submerged) stepper motors are ideally suited for applications in wet environments.
drylin® E - gearbox for stepper motorsImplement heavy-duty format adjustments or stroke movements even with smaller motors.
Adapter kits for servo motors
Spacer, motor flange and coupling due to the right linear tabel and motor combinations.
End- and reference switch suitable to drylin® linear axis
Small and light cantilever axis for "pick & place" applications

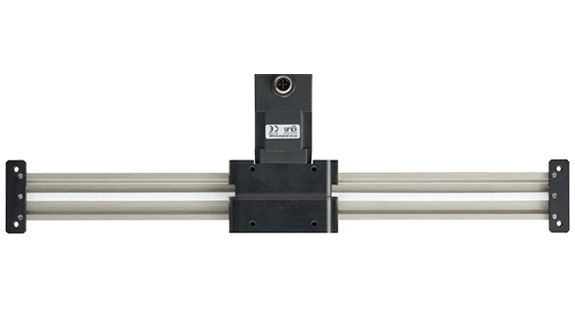

drylin® E drive unit for gantries - space-saving for gantry structures
z axis with longer stroke for the lubrication-free drylin® boom arm axes
drylin® Q - gripper axis, move components within confined spaces and at low weight
drylin® E electric linear axes with motor
drylin® gantries - Surface, line, room
drylin® - lift/swivel unit, based on a rack and pinion drive with coated aluminium 4-edge profile as well as a round table element with integrated toothing

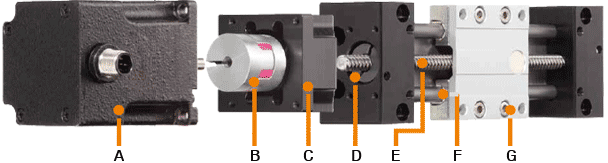

A = igus® step motors
Cost-effective
Maintenance-free solution
Four installation sizes
15 variants
B = Claw coupling
C = Motor flange: connection for stepper motors
D = Ball bearings leadscrew supports
E = Tooth belt, trapezoidal or high helix thread
F = Liners made of maintenance-free iglidur® J
G = Lubrication-free linear guide system using polymer bearings
| motor size | motor datas | possible/recommended axis
belt driven | spindle |
| NEMA17 | Holding torque Mo[Nm]=0,5
flange dimension 42mm | ZLW-0630
ZLW-1040 | SAW-0630
SAW-1040 SHT-12 SLW-1040 SLW-1080 |
| NEMA23 | Holding torque Mo[Nm]=2,0
flange dimension 56mm | ZLW-0630
ZLW-1040 ZAW-1040 | SAW-1040
SHT-12 SLW-1040 SLW-1080 SHT-20 SLW-1660* SLW-2080* |
| NEMA23XL | Holding torque Mo[Nm]=3,5
flange dimension 60mm | ZLW-0630
ZLW-1040 ZAW-1040 | SAW-1040
SHT-12 SLW-1040 SLW-1080 SHT-20 SLW-1660* SLW-2080* |
| NEMA34 | Holding torque Mo[Nm]=5,9
flange dimension 86mm | ZLW-1660 | SHT-20
SLW-1660* SLW-2080* |
