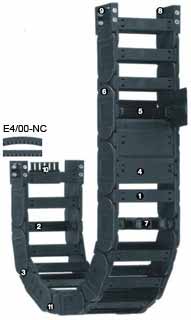

1. Crossbars can be removed on both sides
2. Wide plastic crossbar - cable friendly
3. stop-dog with brake for noise reduction
4. closed and open types can be combined
5. Lid for e-tube can be opened
6. Optimised gliding surfaces
7. Modular internal separation
8. KMA mounting brackets with
fully enclosed mounting options
9. :Locking or pivoting mounting brackets available
10. Strain relief can be integrated in mounting bracket
11. Alternative available with Reverse Bend Radius (RBR).
E4/00-NC = e-chain also available without camber
Available inner widths Bi: 40 to 300 mmAvailable bend radii R: 55 to 250 mmPitch: 46 mm / link = 22 links/m
For new designs, we recommend the improved e-chain® Series E4.28 from the E4.1 family.
For questions, please refer to your igus® contact person. Thank you for your understanding
to the E4.28 series
* The required clearance height is HF = H + 40 mm (with 1 kg/m fill weight), this should be taken into account for all application types.Please contact us if you have particularly narrow space conditions.
** The calculated length corresponds to the chain length without mounting brackets.
A=Moving end, B=Fixed endPitch: 46 mm per linkChain links per m: 22Travel: SChain length = S/2 + K
Unsupported length versus fill weightX axis: Unsupported length in m FLB/FLGY axis: Fill weight in kg/mLower scale: Travel S in mFLB = Unsupported with permissible sagFLG = Unsupported with straight upper run
from 10 m to max. 200 mChain length= S/2+K2Long travels - gliding (up to max. 200 m) Here, the e-chain® upper runs gliding on the lower run in a guide trough. We recommend letting our engineers support you when planning this type of system. In case of travel lengths between 4,0 and 10 m, we recommend a larger unsupported e-chain®.
A1 = Moving endA2 = Fixed end A3 = Guide trough with glide bar A4 = Guide trough with glide bar A5 = Total length of the guide trough
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
2 mounting bracket variants
Modular interior separation
15 widths and 9 bend radii
Practical tools for opening and closing of e- chains® of series E4
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Option 1: Separators and spacers
Option 2: Shelves
As standard, igus® separators are mounted every 2nd chain link!
Standard separator 2201 for e-chains®
is used for vertical division. It can be used additionally for simple vertical/horizontal interior separation
by its slots
Separators can be fixed in position
by means of spacers 205.09 for side-mounted e-chains®.
The available inner height is reduced by 2 mm for each spacer. To prevent this, parts can also be installed from the outside
onto the opening crossbar (not for long travels)

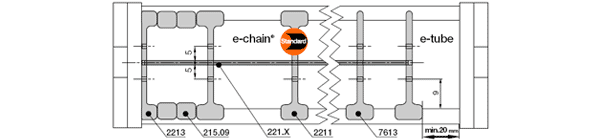

Side plate 2203
Side plate 2203 and full-width shelf 220.X - this option
is recommended if many thin cables are used with
similar diameters. This solution is based on the separator 2201 (7603 for e-tube R760) through which the continuous shelves can be inserted. The 2203 side plate is used for a shelf with e-chain® series 220 when on its side,
This solution is not possible for e-tubes
Option 2: Shelves
As standard, igus® separators are installed at every 2nd chain link!
Side plates 2204, slotted separators 2202 and intermediate shelves
2200.X allow a flexible separation structure. Shelves of various widths can be arranged in steps of 5 mm on 3 levels
Side plate 6002
same as separators. Enables interior separation
up to the side links. No minimum side clearance required!
Intermediate shelf 2200.X
For horizontal separation. Shelves of various widths can be arranged in steps of different width on 3 levels
KMA - pivoting
KMA - locking
"Super-aluminium", "Basic" guide trough
Steel guide troughs
1. Trough side part, aluminium, 2 m
2. Glide bar, plastic, 2 m
3. Plastic glide strips*, side, 2 m
4. Clamping shoe, aluminium
5. C-profile, galvanised steel
6. Screw M6 x 16
7. Sliding nut M6
8. "Basic" connector, plastic
10. Optional: Silencer profile, rubber
*without glide strips on request
"Super-aluminium" trough - the igus® standard for guide troughs
The "Super" aluminium trough is a modular system of guide troughs for long travels (where e-chains® are gliding on top of themselves). The basic "Super" aluminium trough has a simple and cost-efficient designs and can be expanded for sophisticated plant engineering.
Its universal design makes it the recommended igus® standard for guide troughs.
1. Interface connector
2. Plastic glide bar
3. Clamping shoe
4. Glide strips
New! Rapid assistance when mounting
the e-chain® fixed end
The fixed-end module makes it easy to mount the KMA mounting bracket quickly on the super aluminium trough without drilling.
1. Guide trough (blue)2. Glide bar (black)3. Installation set (red)4. Individual bracket without C-profile5. Profile rail length
+ Easy assembly using installation sets+ 2-part design - configurable from chain width+ Very stable+ cost-effective+ large selection
Guide trough without glide bars, Part No. 99.30, guide trough with glide bars Part No. 99.31
Installation sets, Part No. 95.50. XX
Support tray - Type 01
